Variant 4

The standard for generic cabling in industrial premises ISO/IEC 24702 resp. EN 50173-1 and -3 stipulates the connector of Variant 4. This, extraordinary space saving connector provides a 10 Gbit-link to the machine while having the same installation dimensions as a 4-way M12 connector. The connectors of Variant 4 are standardized in the IEC 61076-3-106, designed to meet the demands of harsh industrial environments, guaranteeing protection class IP67 whether mated or unmated (using the IP67 protection cap). Furthermore, the modular principle -which is used on all connectors with STEADYTEC®-Technology allows us to offer a wide range of products. Benefit from maximum flexibility and choose the insert you need! The RJ45 plug and bulkhead inserts stand out due to high power reserves and offer transmission characteristics of Class EA acc. to ISO/IEC11801. The FO plug and bulkhead inserts are available for GOF and POF-fibres and provide the most suitable solution for every application. Performance Characteristics: Variant 4 acc. to IEC 61076-3-106 protection class IP67 available with RJ45 Cat.6A, Cat.6 Class EA, USB or FO insert rugged PA-Housing storage of cables with diameter 5...10 mm pre-assembled plugs and set products for simple assembly simple mounting of bulkheads through a central screwed gland or four screws with bend protection to prevent cables from being excessively bent NBR aiguilette at the protection cap bay for marking labels

RJ45 plug sets V4

FO Plug Sets V4

RJ45 Plug Inserts V4

FO Plug Inserts 2SC V4

FO Plug Inserts LC-Duplex V4

Plug Housings V4

Dust Protection Caps for Plugs V4

Colour Coding V4

Bulkhead Sets V4

FO Bulkhead Sets V4

RJ45 Bulkhead Inserts V4

FO Bulkhead Inserts SC-RJ/2SC V4

FO Bulkhead Inserts LC-Duplex V4

Bulkhead housings V4

Dust Protection Cap for Bulkhead V4

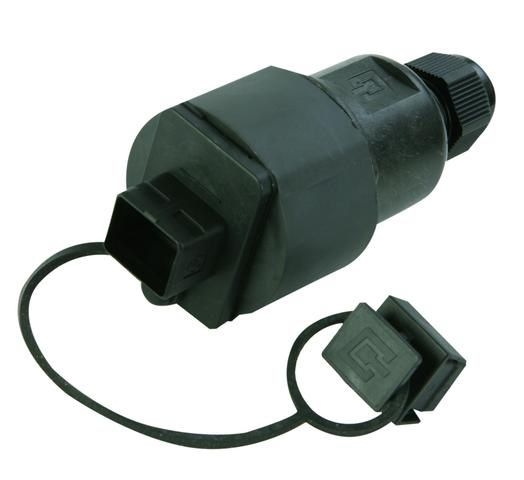

Outlets with Bulkhead V4

Telegartner: STX V4 Bulkhead Set

Telegartner: STX V4 Bulkhead Set, RJ45 module A Cat.6A

Price on request

Telegartner: STX V4 Bulkhead Set

Telegartner: STX V4 Bulkhead Set, RJ45 coupler Cat.6

Price on request

Telegartner: STX V4 Bulkhead Set

Telegartner: STX V4 Bulkhead Set, Multimode, LC-Duplex adaptor

Price on request

Telegartner: STX V4 Bulkhead Set

Telegartner: STX V4 Bulkhead Set, Singlemode, LC-Duplex adaptor

Price on request

Telegartner: STX V4 Bulkhead Set

Telegartner: STX V4 Bulkhead Set, Multimode, 2SC/SC-RJ adaptor

Price on request

Telegartner: STX V4 Bulkhead Set

Telegartner: STX V4 Bulkhead Set, Singlemode, 2SC/SC-RJ adaptor

Price on request
