SSMB
The SSMB series of connectors utilizes a snap coupling and is suitable for applications up to a frequency of 3 GHz. The impedance is controlled at 50 Ω. Connector designs are available for flexible cables like RG-316 and RG-178. Styles are available for mounting to printed circuit boards using thru-hole soldered assembly. Solder and crimp techniques are used to terminate this series to the cables. Because of their small size, SSMB connectors have applications in small instruments and communication equipment.
Telegartner: SSMB Angle Jack Crimp G03
Telegartner: SSMB Angle Jack Crimp G03,
C2513, G03 (RG-178 B/U), Gold (Standard) (packed per 1)
Product number:
J01191A0041Z
Price on request
Telegartner: SSMB Bulkhead Plug Crimp G03
Telegartner: SSMB Bulkhead Plug Crimp G03,
rear mounting, C3313, Z55, G03 (RG-178B/U), Gold (Standard) (packed per 5)
Product number:
100024919
Price on request
Telegartner: SSMB Bulkhead Receptacle, male
Telegartner: SSMB Bulkhead Receptacle, male,
front mounting, Z22, gold (packed per 1)
Product number:
100027675
Price on request
Telegartner: SSMB-Angle Jack Crimp G03
Telegartner: SSMB-Angle Jack Crimp G03,
C2513, G03 (RG-178 B/U), Gold (Standard) (packed per 5)
Product number:
100024923
Price on request
Telegartner: SSMB-Angle Jack Crimp G07
Telegartner: SSMB-Angle Jack Crimp G07,
C2503, G07 (RG-316/U), Gold (Standard) (packed per 5)
Product number:
100024924
Price on request

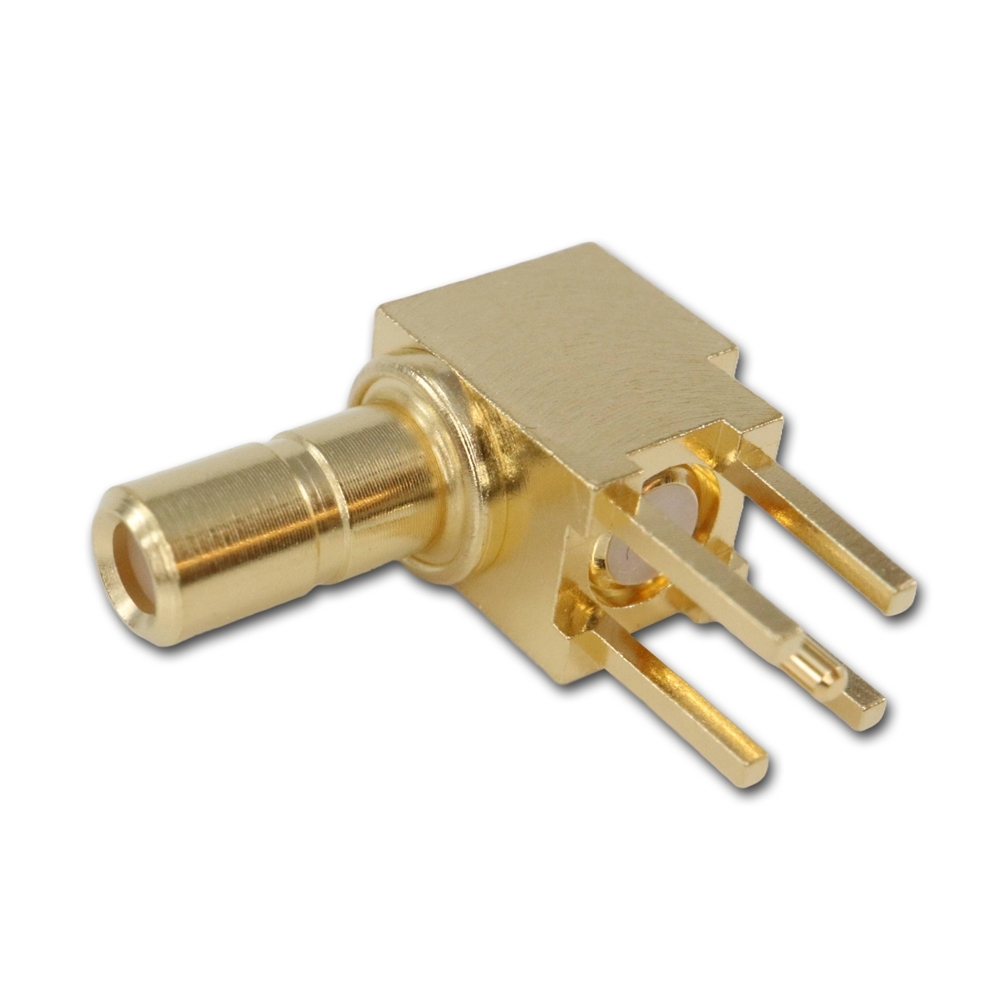

Telegartner: SSMB-Angle PCB Receptacle, male
Telegartner: SSMB-Angle PCB Receptacle, male,
Angle Receptacle, male, for Printed Circuits, Z23, Gold (Standard) (packed per 5)
Product number:
100024917
Price on request
Telegartner: SSMB-Angle PCB Receptacle, male
Telegartner: SSMB-Angle PCB Receptacle, male,
Z23, Gold (Standard) (packed per 1)
Product number:
J01190A0041Z
Price on request
Telegartner: SSMB-Bulkhead Receptacle, male
Telegartner: SSMB-Bulkhead Receptacle, male,
front mounting, Z22, Gold (Standard) (packed per 5)
Product number:
100024914
Price on request

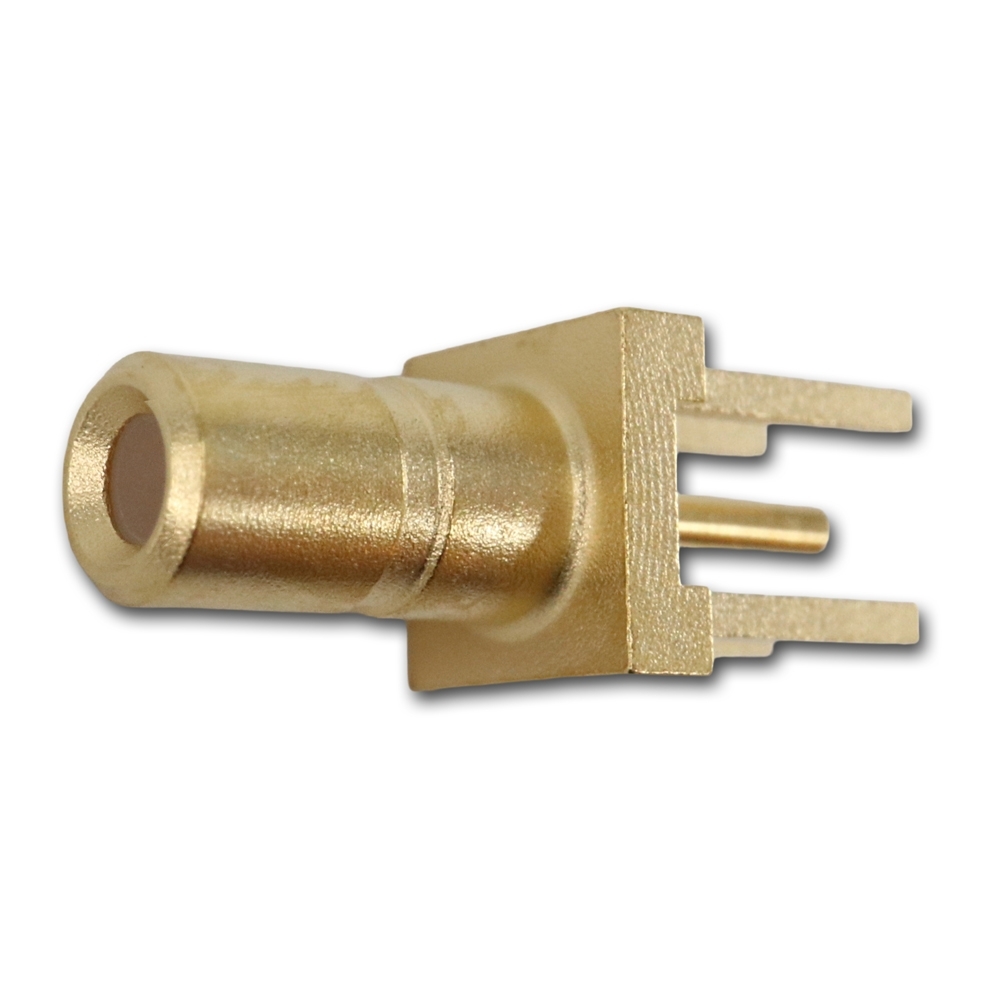

Telegartner: SSMB-PCB Receptacle, male
Telegartner: SSMB-PCB Receptacle, male,
Z23, Gold (Standard) (packed per 1)
Product number:
J01190A0031Z
Price on request

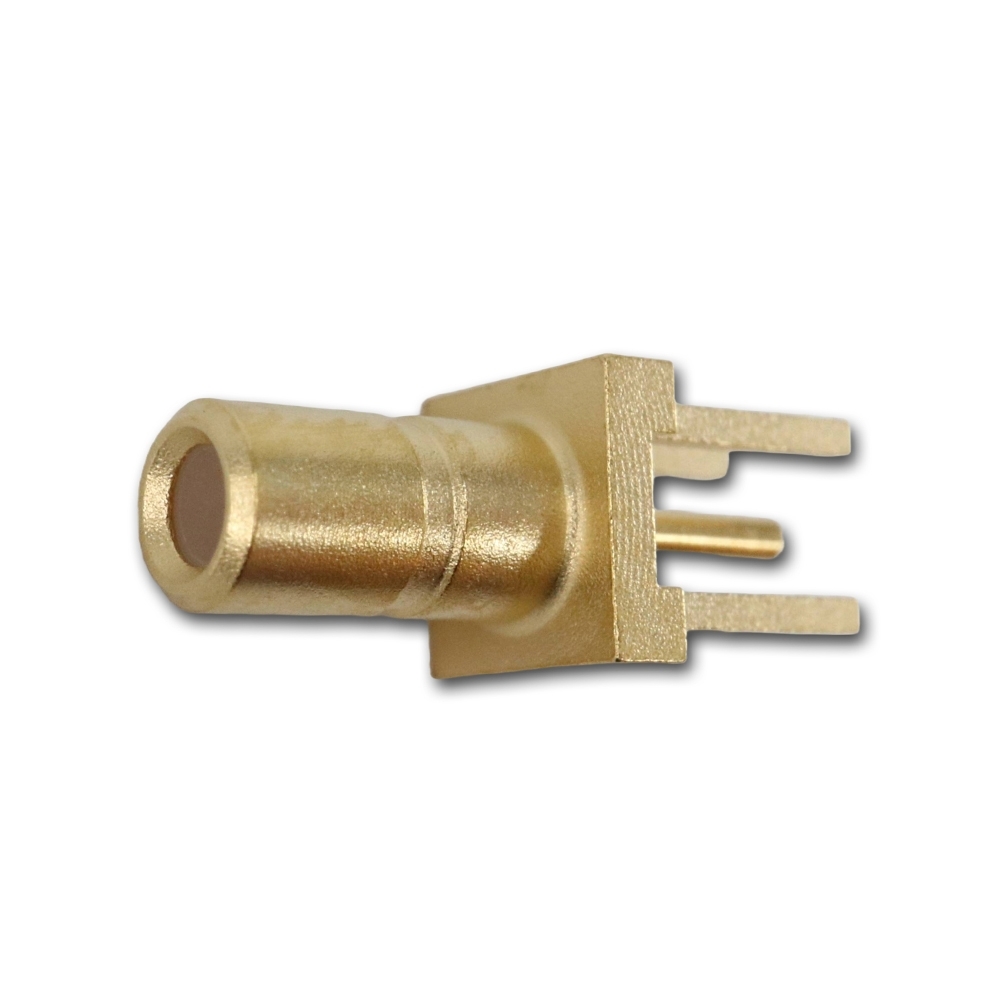

Telegartner: SSMB-Receptacle, male
Telegartner: SSMB-Receptacle, male,
for Printed Circuits, Z23, Gold (Standard) (packed per 5)
Product number:
100024916
Price on request
Telegartner: SSMB-Straight Jack Crimp
Telegartner: SSMB-Straight Jack Crimp,
C2413, K 01252 D, Gold (Standard) (packed per 5)
Product number:
J01191A0081
Price on request
Telegartner: SSMB-Straight Jack Crimp G03
Telegartner: SSMB-Straight Jack Crimp G03,
C2413, G03 (RG-178B/U), Gold (Standard) (packed per 5)
Product number:
100024921
Price on request
Telegartner: SSMB-Straight Jack Crimp G03
Telegartner: SSMB-Straight Jack Crimp G03,
C2403, G07 (RG-316/U), Gold (Standard) (packed per 1)
Product number:
100027676
Price on request
Telegartner: SSMB-Straight Jack Crimp G03
Telegartner: SSMB-Straight Jack Crimp G03,
C2413, G03 (RG-178B/U), Gold (Standard) (packed per 1)
Product number:
J01191A0001Z
Price on request
Telegartner: SSMB-Straight Jack Crimp G07
Telegartner: SSMB-Straight Jack Crimp G07,
C2403, G07 (RG-316/U), Gold (Standard) (packed per 5)
Product number:
100024922
Price on request

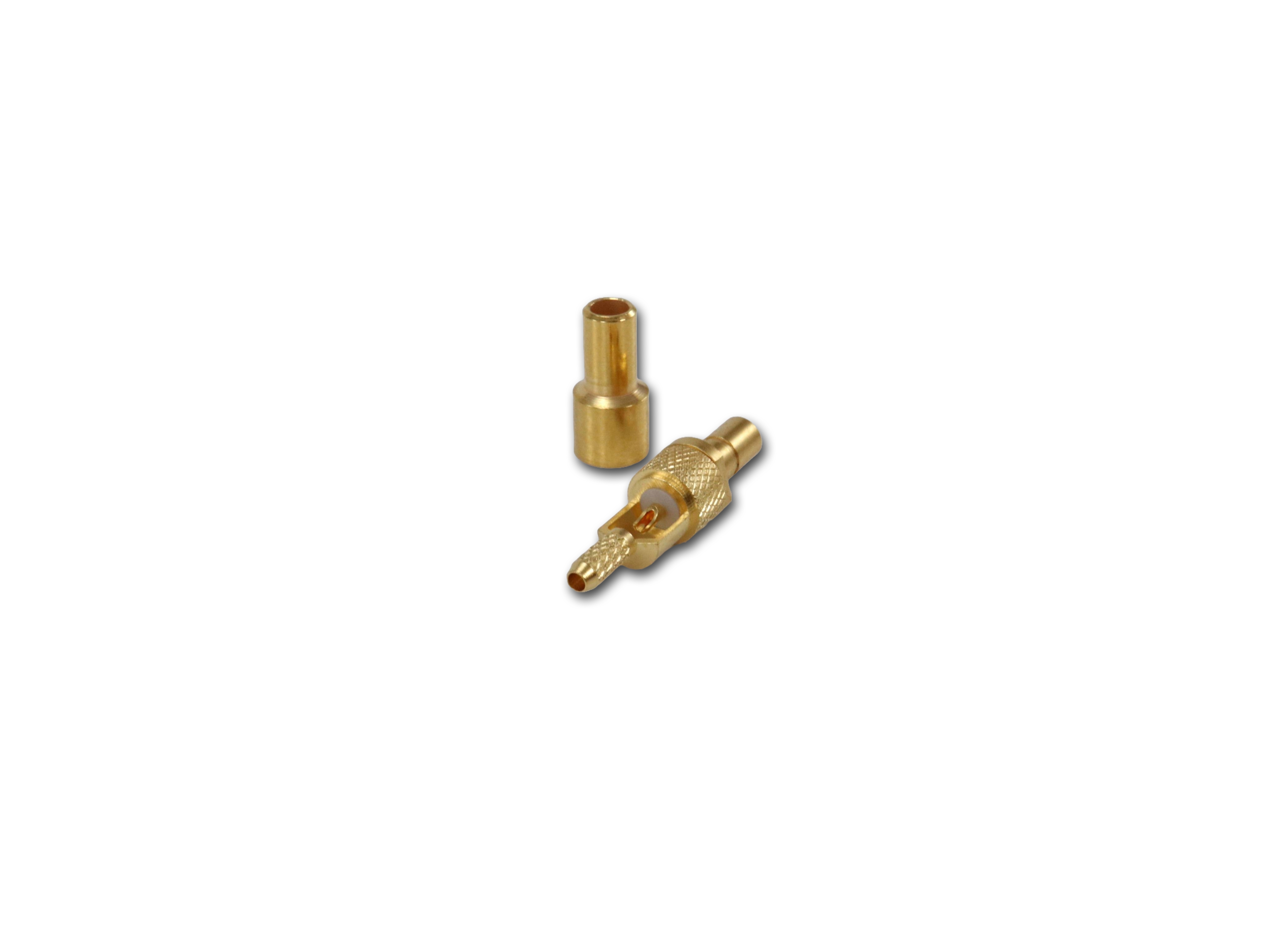

Telegartner: SSMB-Straight Plug Crimp G03
Telegartner: SSMB-Straight Plug Crimp G03,
C2413, G03 (RG-178 B/U), Gold (Standard) (packed per 5)
Product number:
100024915
Price on request
Telegartner: SSMB-Straight Plug Crimp G07
Telegartner: SSMB-Straight Plug Crimp G07,
C2403, G07 (RG-316/U), Gold (Standard) (packed per 1)
Product number:
100024918
Price on request
