Mini-UHF
The Mini-UHF series is a miniaturized version of the UHF connector, but has improved electrical performance. The Mini-UHF has threaded coupling and can be used up to a frequency of 2.5 GHz. Unlike the UHF, the Mini-UHF series is impedance controlled at 50 Ω. Connector styles are available for flexible and conformable cables. Solder and crimp techniques are used to terminate this series. Applications for the Mini-UHF series are in the area of mobile radios and mobile communications; especially in vehicles.
Filter
–

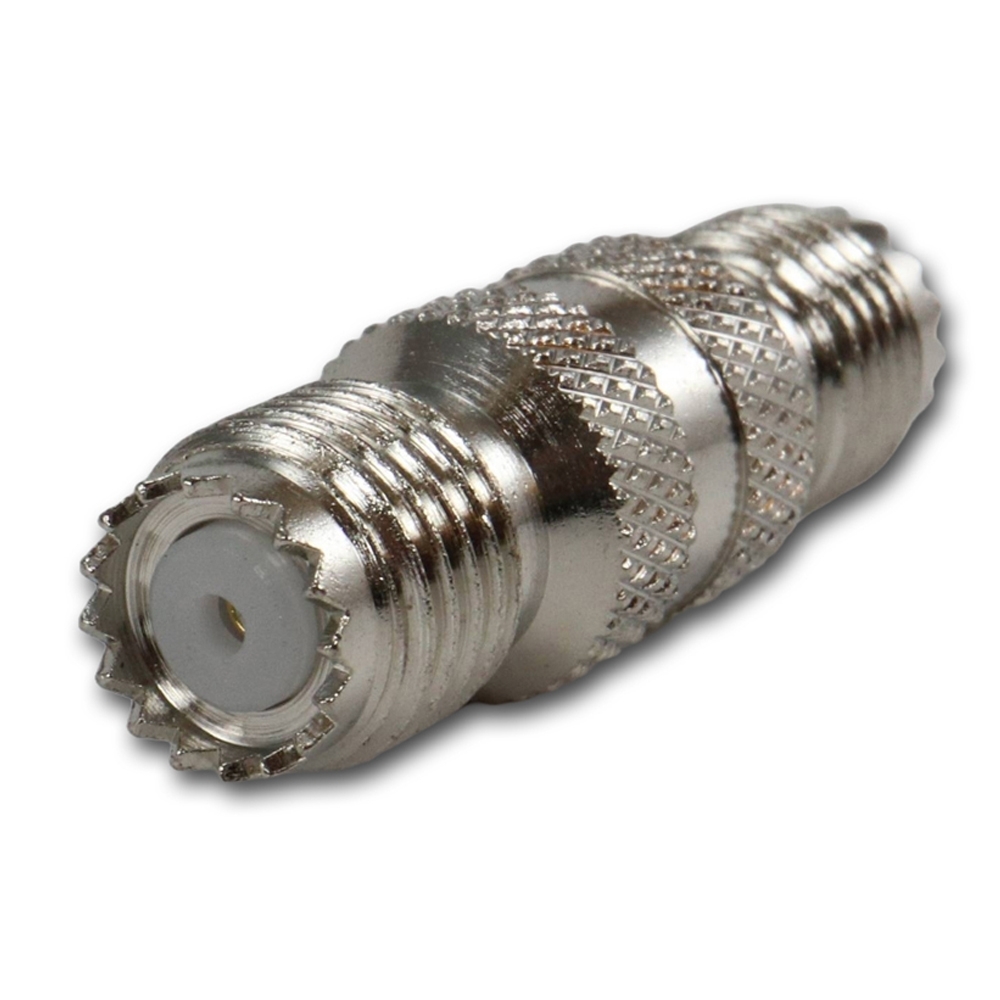

Telegartner: Mini-UHF Adaptor
Telegartner: Mini-UHF Adaptor,
f-f (packed per 5)
Product number:
100024362
Price on request
Telegartner: Mini-UHF Adaptor
Telegartner: Mini-UHF Adaptor,
m-m (packed per 5)
Product number:
J01047F0000
Price on request
Telegartner: Mini-UHF Angle Plug Crimp G01
Telegartner: Mini-UHF Angle Plug Crimp G01,
solder/crimp, B1705, G01 (RG-58 C/U) (packed per 5)
Product number:
100024355
Price on request
Telegartner: Mini-UHF Angle Plug Crimp G01
Telegartner: Mini-UHF Angle Plug Crimp G01,
solder/crimp, B1705, G01 (RG-58 C/U) (packed per 1)
Product number:
100027575
Price on request
Telegartner: Mini-UHF Bulkhead Socket
Telegartner: Mini-UHF Bulkhead Socket,
inner conductor gold plated brass, Z01
Product number:
J01046F0000
Price on request
Telegartner: Mini-UHF Bulkhead Socket Crimp G07
Telegartner: Mini-UHF Bulkhead Socket Crimp G07,
crimp/crimp, B2828, Z50, G07 (RG-316/U), (packed per 5)
Product number:
100024360
Price on request
Telegartner: Mini-UHF Press-in Jack
Telegartner: Mini-UHF Press-in Jack,
Z102
Product number:
J01046A0002
Price on request
Telegartner: Mini-UHF Straight Jack Crimp G01
Telegartner: Mini-UHF Straight Jack Crimp G01,
crimp/crimp, captivated contact, B1305, G01 (RG-58C/U) (packed per 1)
Product number:
J01046F0001
Price on request
Telegartner: Mini-UHF Straight Plug Crimp G01
Telegartner: Mini-UHF Straight Plug Crimp G01,
crimp/crimp, B1305, G01 (RG-58 C/U) (packed per 5)
Product number:
100024356
Price on request
Telegartner: Mini-UHF Straight Plug Crimp G07
Telegartner: Mini-UHF Straight Plug Crimp G07,
crimp/crimp, B1324, G07 (RG-316/U) (packed per 5)
Product number:
100024358
Price on request
