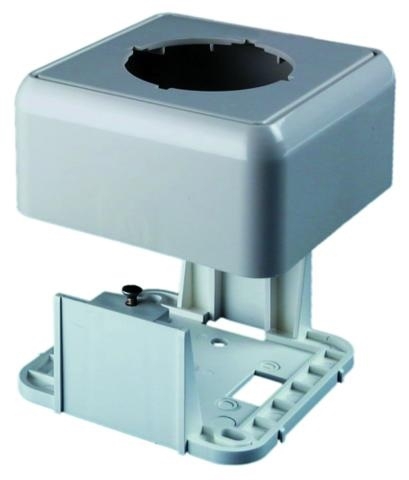

Surface Mount Set for Outlets

Product description Every network has to be adapted to the needs of its user and the prevailing conditions. sPATCH is the SOHO, mini-LAN and office system solution for small, individual networks in crafts enterprises, engineering offices, municipal authorities, law firms, travel agencies, etc. To meet the requirements of system solutions with mixed applications (LAN and ISDN/Telephone) in small offices, Telegärtner offers its sPATCH, a quick small-patch version, allowing contractors and users to realize an easy-to-install, tailormade network for all systems ready for the future. The entire solution can easily be accommodated in a small, compact wall housing. Select your profile from the basic or starter set and add the application-specific components for your application in order to obtain your optimum system solution. As a matter of course you can adapt your sPATCH network to meet growing requirements whenever necessary, thanks to modular extensions. All active and passive components are genuine Telegärtner products and are therefore optimally attuned to one another. The transmission properties of a Channel / Permanent Link Class E in accordance with ISO/IEC 11801, 2nd edition, are met in combination with outlets from Telegärtner and an S/FTP installation cable, for example. Plug-and-play installation ensures that your individually tailored network will be up and operational within the shortest time possible. In addition to our sPATCH compact housing, we also offer two further rack versions: our 3 HU / 4 HU LAN wall distribution panels for integrating standard 19" built-in components. All standard cabinets are pre-assembled and equipped with a 3-way socket. The data outllet AMJ45 combines many features in a single design with an attractive cost/benefit ratio. Usually you only find out from which direction you can lead cables in once you are at the site. This is no problem with the AMJ45: you can select from among eight possible directions, in 45 degree angle increments, on site. With the optional surface mount set from Telegärtner, you can transform the AMJ45 into a surface-mounted outlet, and up to three can fit into a subfloor mounting box. One of the key features of the AMJ45 series is an RJ45 jack for 8-pin connectors with automatically operating, spring-loaded, side reduction elements that guarantee a precise seat of even the narrower 6-pin RJ11/12 connectors in the outlet (Cat. 5e outlets only). Furthermore the AMJ45 can be combined with nearly every switching program. Other features such as dust protection covers, direct plug-in ground connectors, flip-up labels that cannot be get lost, a fully shielded metal housing, a separable 5x1 packaging, and much, much more will make your decision to reduce your current stock levels an easy one. Performance Characteristics Transmisson Characteristics acc. to ISO/IEC 11801:2002; EN 60603-7-5 (RJ45 shielded, 250 MHz); TIA/EIA-568-B.2-1 shielded meets requirements of EN 55022 360 degrees shielding contact and strain relief by means of two (one, in the case of Cat.5e) separate, captive screw clamps for the exterior cable jacket and shielding can be wired up from all directions, in 8x45° steps; enables reduction in stock diversity either horizontal or vertical installation in the cable duct as a result of variable cable inlet Type offers low installtion depth; problem-free installation in floor tanks as a result of cable inlet form the side within the subfloor mounting box option of plug-in ground connection at all four corners; according to DIN 46342-1; 6,3 mm can be combined with covers for a wide variety of switching programs simple lead presorting guarantees leads will be laid without damage and good transmission performance cover plate can be retrofitted with a flip-up loss-proof, transparent label field dust cover flaps detachable vertical fixing rail of the four-hole bearer ring (e. g. for subfloor installation)
